Wltoys 144001 124018 124019 RC Car Upgraded Brushless 3650 4300KV Motor 120A ESC 21G Servo TX RX Combo Set Parts

Installation Picture Please Click Here to see and install

This combo is not suggested to use 3s 11.1v battery,it will be easily burned

Description:

Item Name:Brushless Combo set(upgraded parts)

Material:Metal and plastic

Color:As shown

Compatible Models:Wltoys 144001 124018 124019 1/14 rc car vehicles models

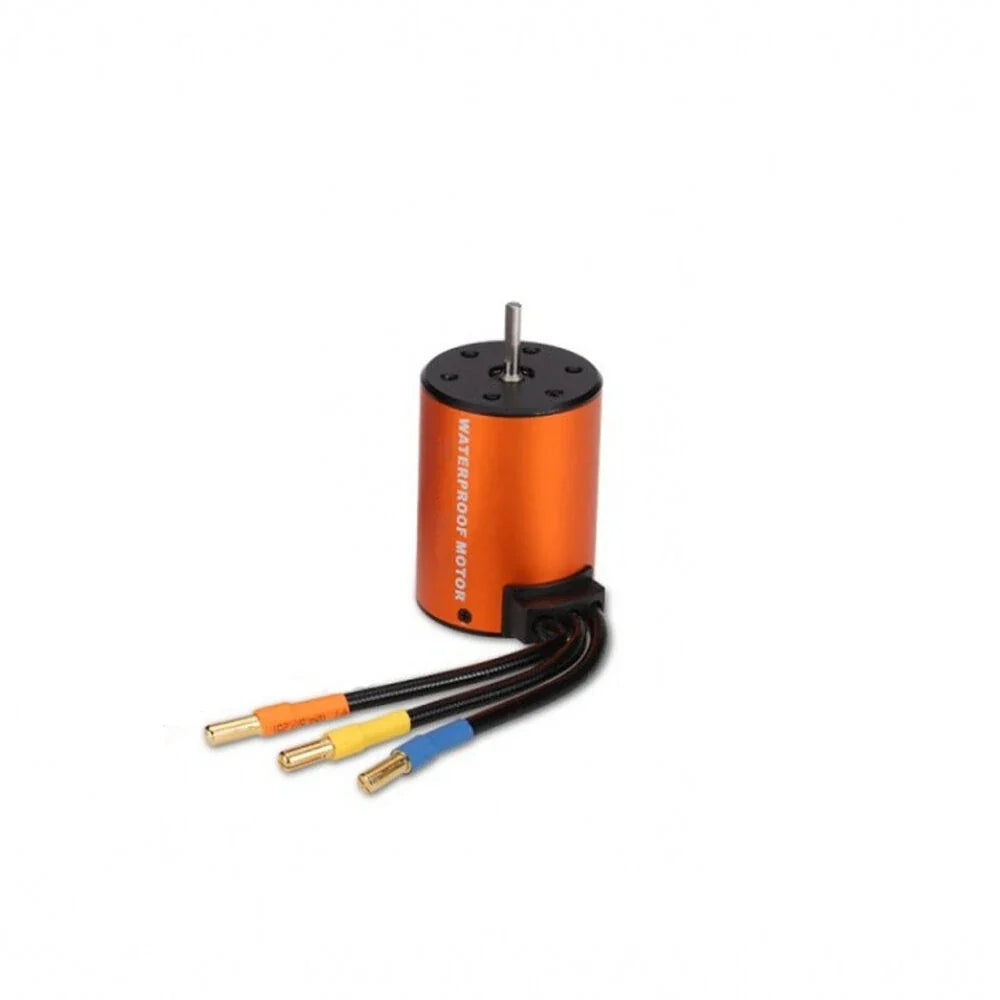

Motor Spec:

Size:3650

KV:4300KV

Watts:900

Max Voltage:<12V

Max Amps:75A

Rotor Poles:4

IO:2.7A

Resistance:0.0075

Max RPM:50000

Motor Length:50mm

Motor Diameter:36mm

Shaft Diameter:3.175mm

Length of Extended Shaft:15mm

Connector:4.0mm gold

Net Weight:180g

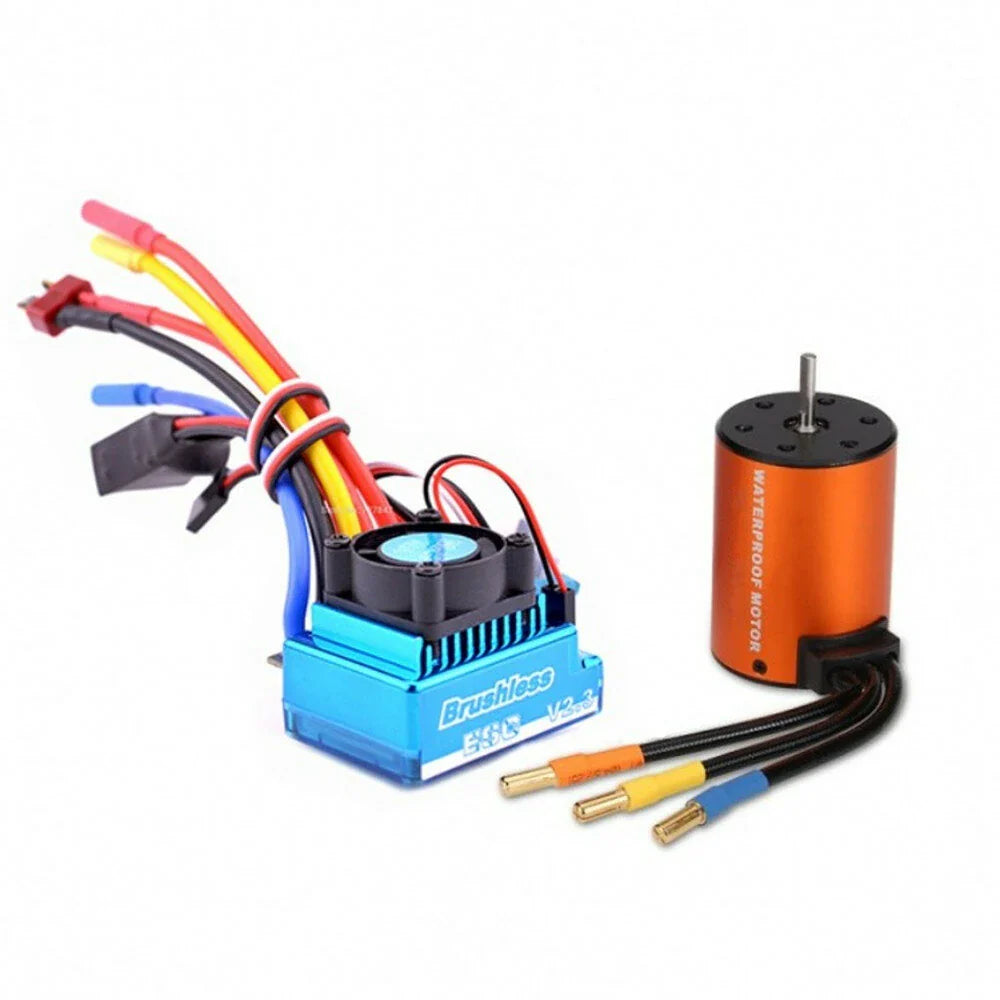

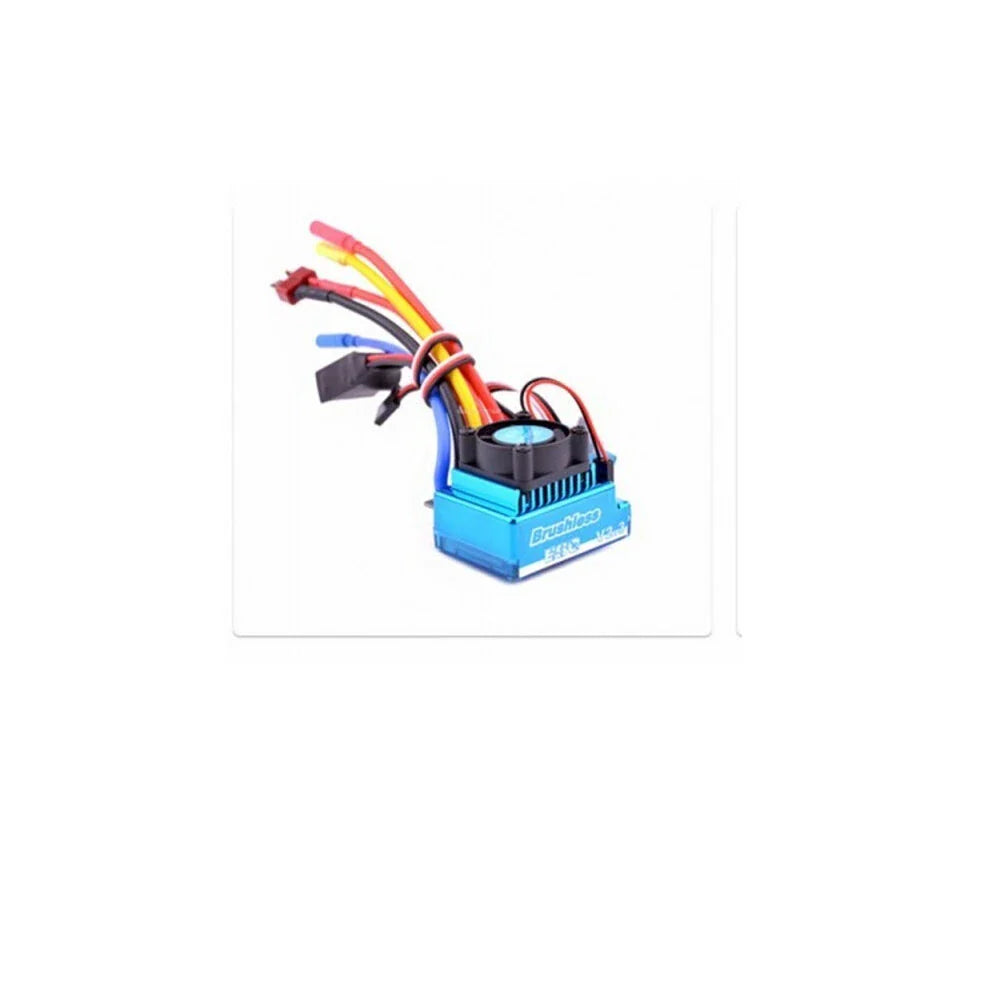

ESC Spec:

Cont.Current:120A

Burst Cureent:760A

Resistance:0.0007ohm

Battery:2-3S Lipo or 4-9 cells NiMH

BEC Output:5V/3A(switch mode)

ESC Dimension:16*6*5cm

ESC Weight:About 72g

Connector:4.0mm gold banana plug

Battery Plug:T plug

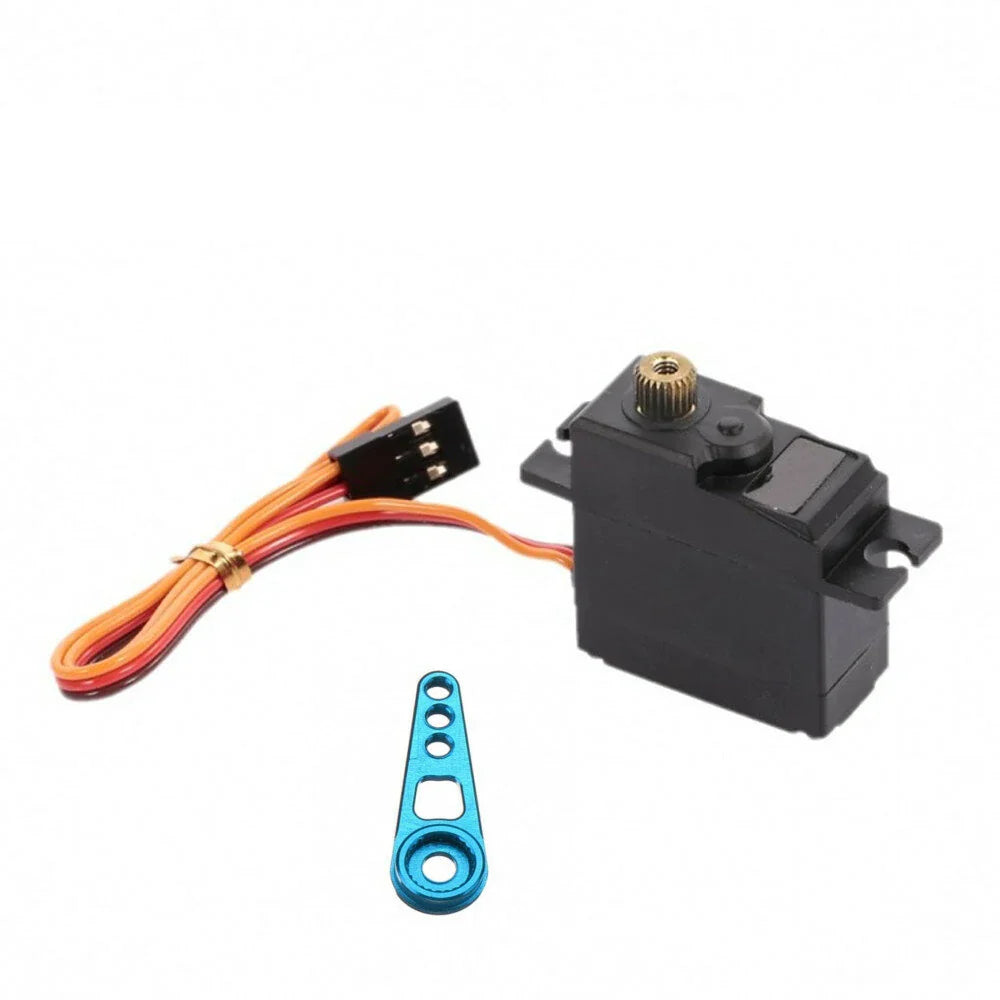

Servo and Servo Arm Spec:

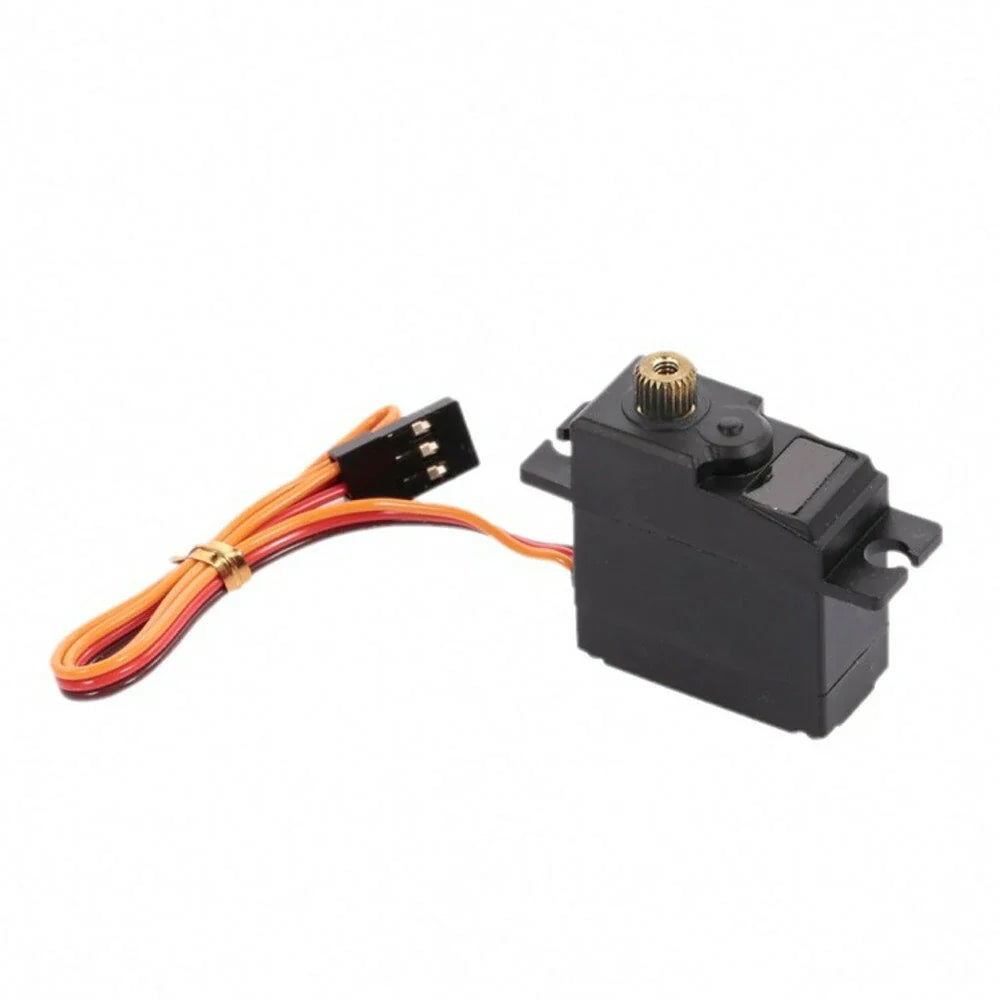

Servo:21G,metal gears

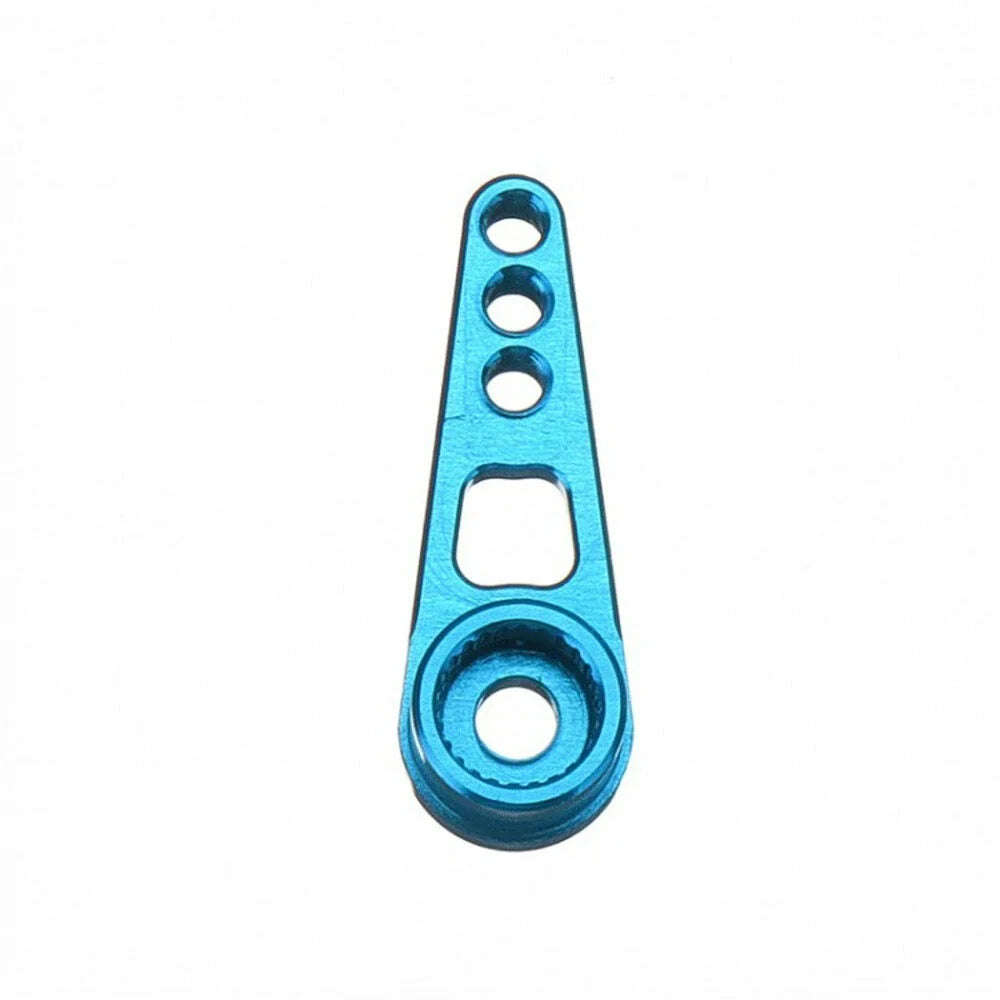

Servo Arm:Metal

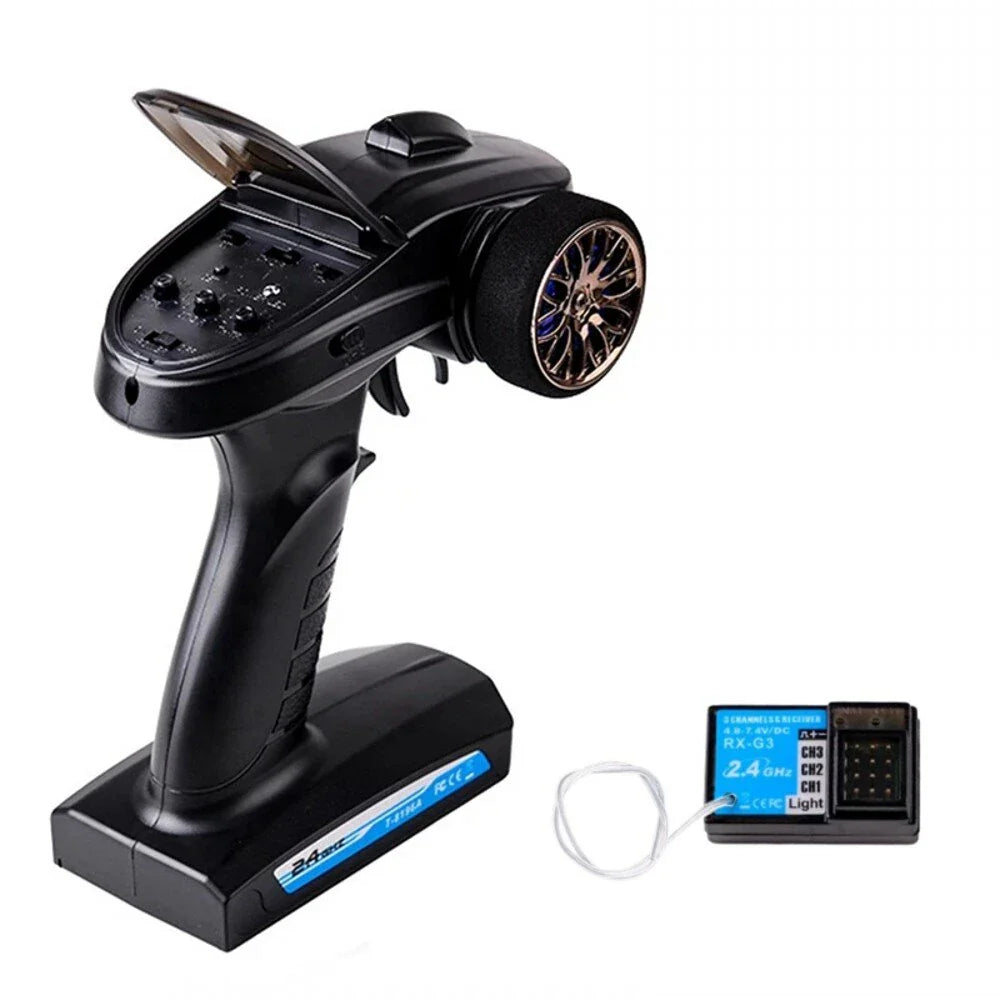

Transmitter Receiver Spec:

Frequency:2.4G

Channel:3CH

Remote Control Distance:About 300m

Power Battery:4X 1.5V AA battery(not included)

Transmitter Manual Download:Please Click Here

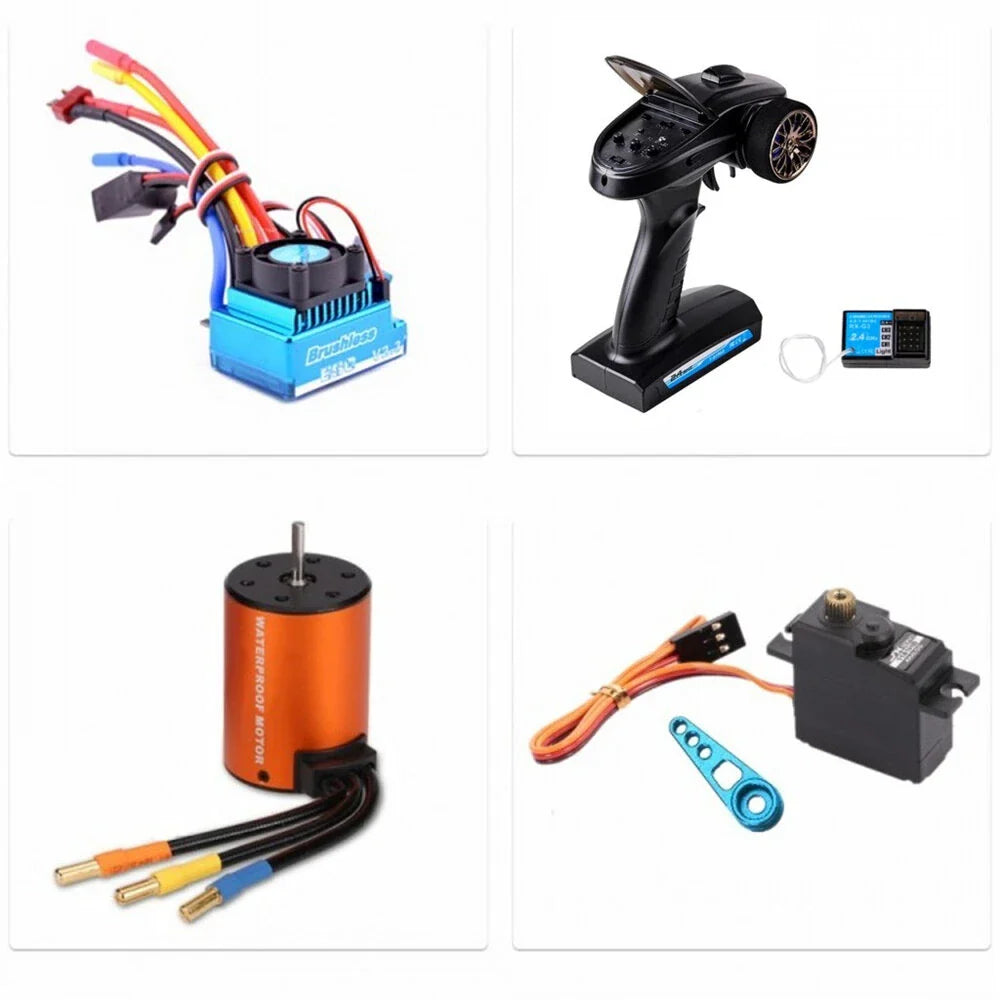

Package Included:
1X 3650 Brushless Motor

1X 120A Brushless ESC

1X Metal Gear Servo

1X 2.4G 3CH Transmitter

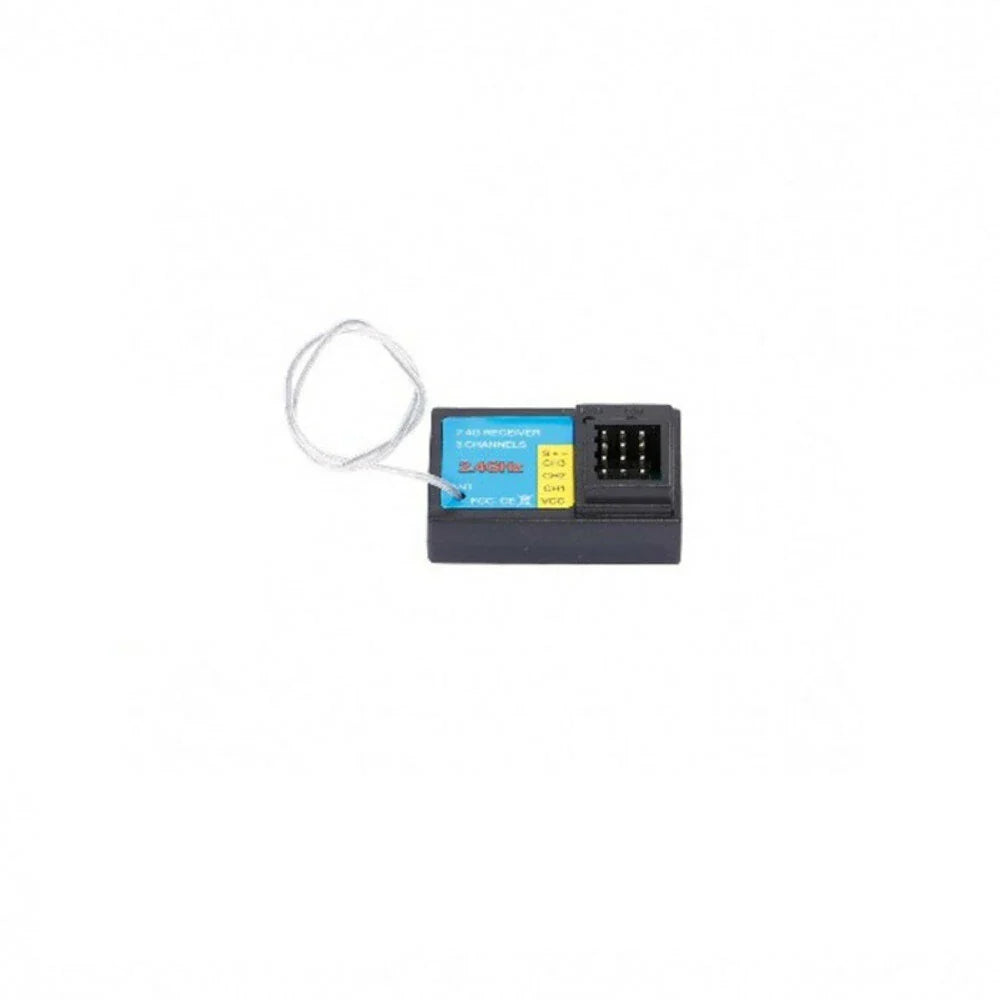

1X Receiver

1X Metal Servo Arm
