WLtoys K270 Black Hawk UH-60L RC Helicopter

The WLtoys K270 Black Hawk UH-60L RC Helicopter is a 4-channel remote control helicopter designed for enthusiasts who want a realistic military helicopter appearance combined with stable and accessible flight controls. Based on the iconic Black Hawk UH-60L design, the K270 features a detailed scale-inspired body, four-rotor configuration, 6-axis gyroscope stabilization, altitude hold, optical flow positioning, and a powerful brushless main motor.

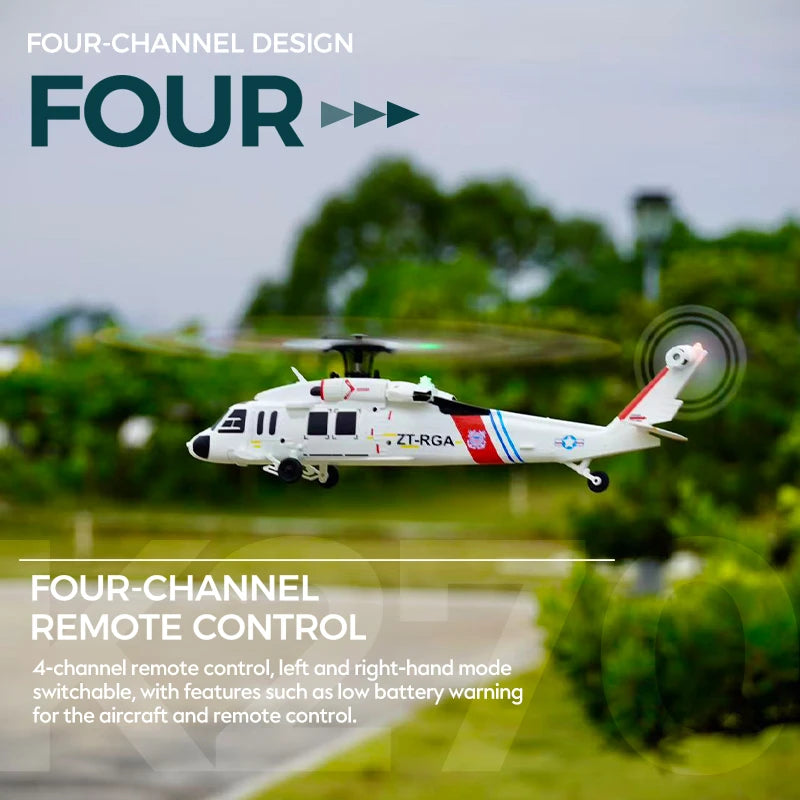

Operating on a 2.4G remote control system, the WLtoys K270 provides a control distance of approximately 80–100 meters. Its 6G flight mode and stabilization system make it easier to maintain a steady flight path, while the 4-channel control layout provides functions including forward, backward, left, right, ascending, descending, turning, and side flight.

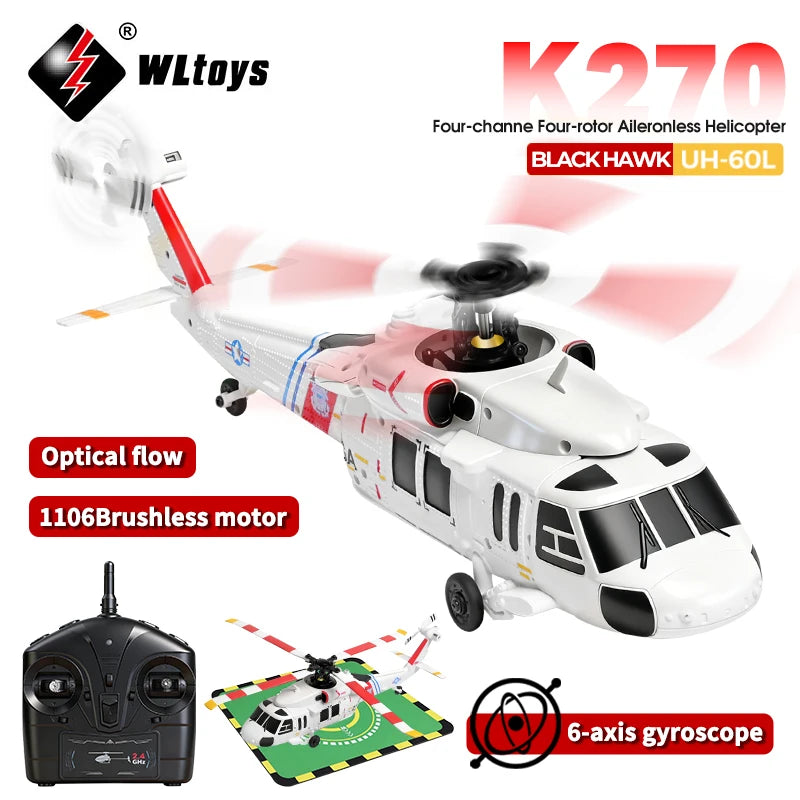

Key Features of the WLtoys K270

• Black Hawk UH-60L Design: Detailed scale-inspired styling based on the Black Hawk UH-60L military helicopter.

• 4-Channel Control: Provides straightforward control over altitude, direction, turning, and side flight.

• 6-Axis Gyroscope: Helps stabilize the helicopter during flight and provides a more controlled flying experience.

• Altitude Hold: A barometer-based altitude-hold system helps the helicopter maintain its height.

• Optical Flow Positioning: Helps improve positional stability, particularly when flying at lower altitude.

• Brushless Main Motor: Uses a 1106 11200KV out-runner brushless motor for responsive and efficient power.

• 2.4G Remote Control: Offers approximately 80–100 meters of remote control distance.

• Signal-Loss Protection: If the remote signal is lost, the helicopter can maintain its current altitude briefly before beginning a controlled descent.

• Ready-to-Go Design: The helicopter is supplied with the major components required for operation, including the remote controller and battery.

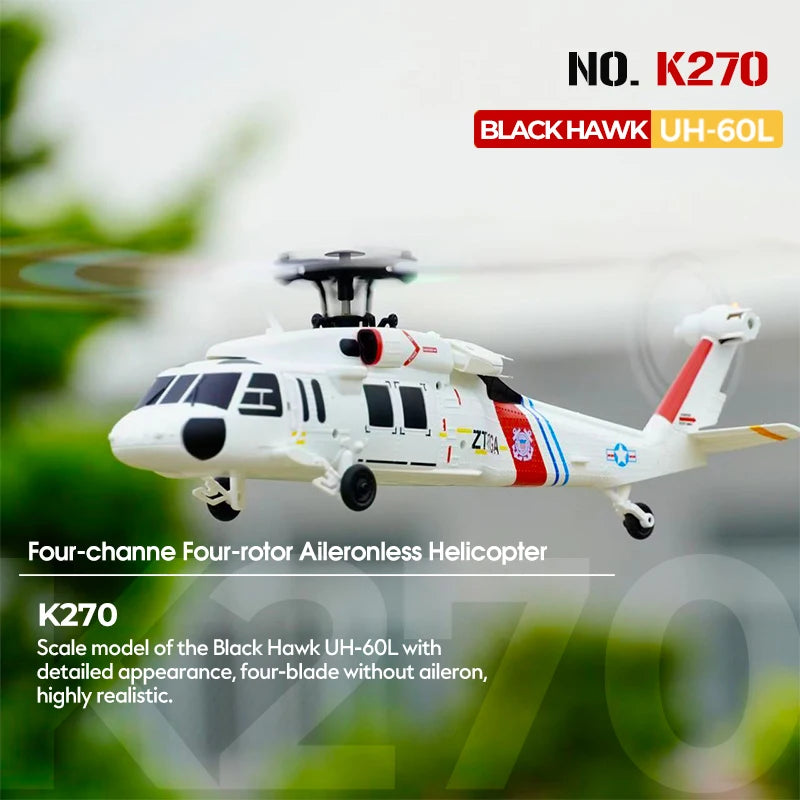

Realistic Black Hawk UH-60L Design

The WLtoys K270 is designed as a scaled-down representation of the Black Hawk UH-60L, giving the helicopter a distinctive military aircraft appearance. Its body measures approximately 265 mm in length, 260 mm in rotor diameter, and 72 mm in height.

Unlike a conventional helicopter with a separate tail rotor, the K270 uses a four-rotor configuration. The rotor system is designed around aerodynamic principles to provide power and contribute to flight stability. The engineering composite construction combines a lightweight structure with a detailed exterior suitable for RC helicopter enthusiasts and collectors.

The K270 is finished in white and features a compact design that can be used for both indoor and outdoor flying when suitable conditions are available.

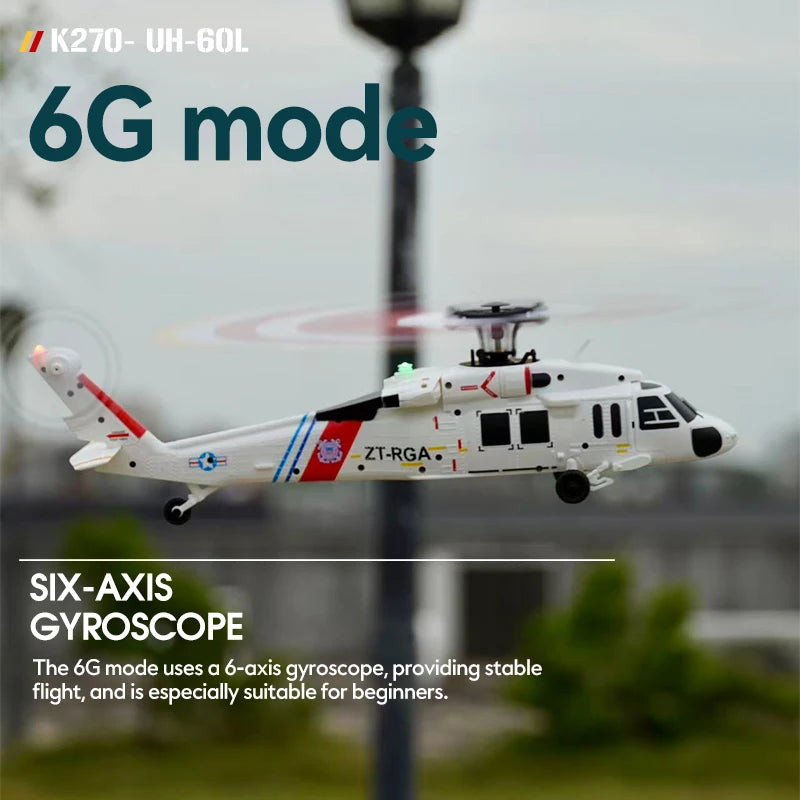

Stable 6G Flight System

One of the main features of the WLtoys K270 RC helicopter is its 6-axis gyroscope stabilization system. The 6G mode is designed to help keep the aircraft stable and make control more manageable, particularly for pilots who are still becoming familiar with RC helicopters.

The helicopter also incorporates altitude hold using a barometer and optical flow positioning. These systems work together to assist with maintaining altitude and position, reducing the amount of constant manual correction required from the pilot.

The 4-channel control system supports ascending and descending, forward and backward movement, left and right turning, and side flight. One-key takeoff and landing functions are also included, providing a simpler way to begin and finish a flight.

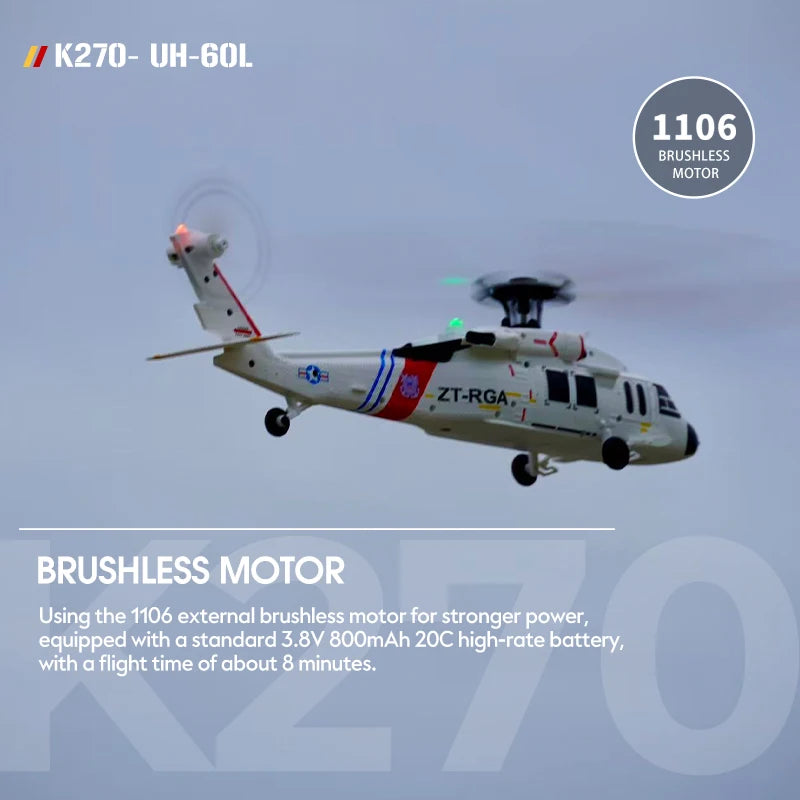

Brushless Motor and Battery

The WLtoys K270 uses a 1106 11200KV out-runner brushless motor as its main motor. The brushless power system provides the propulsion required for the helicopter's four-rotor configuration.

The included battery is a 3.8V 800mAh 20C battery. According to the supplied product specifications, the helicopter has an approximate flight time of 8 minutes, while charging takes approximately 120 minutes.

A dedicated USB charging cable is included. The charging system is designed to help protect the battery during charging and provides a convenient way to recharge the supplied battery.

2.4G Remote Controller

The K270 uses a 2.4G remote control system with a stated operating distance of approximately 80–100 meters. The transmitter uses a 4-channel control layout and supports MODE2 operation.

The controller is designed with independent joystick mounts to provide tactile feedback and more precise centering. The control sticks allow the pilot to manage throttle and flight direction while the helicopter's stabilization systems assist with maintaining controlled flight.

The remote controller also provides low-battery warnings for the aircraft and transmitter, helping the pilot monitor the power status during operation.

Signal-Loss Protection

The WLtoys K270 includes a signal-loss anti-crash function designed to provide additional protection if communication between the helicopter and transmitter is interrupted.

According to the supplied specifications, when the remote signal is lost, the helicopter can maintain its current altitude for approximately two seconds before beginning a slow descent. If the transmitter is restarted while the helicopter remains within the controllable range, the pilot can reconnect control by moving the throttle stick up and down.

This feature can provide an additional layer of protection during unexpected signal interruptions.

WLtoys K270 Specifications

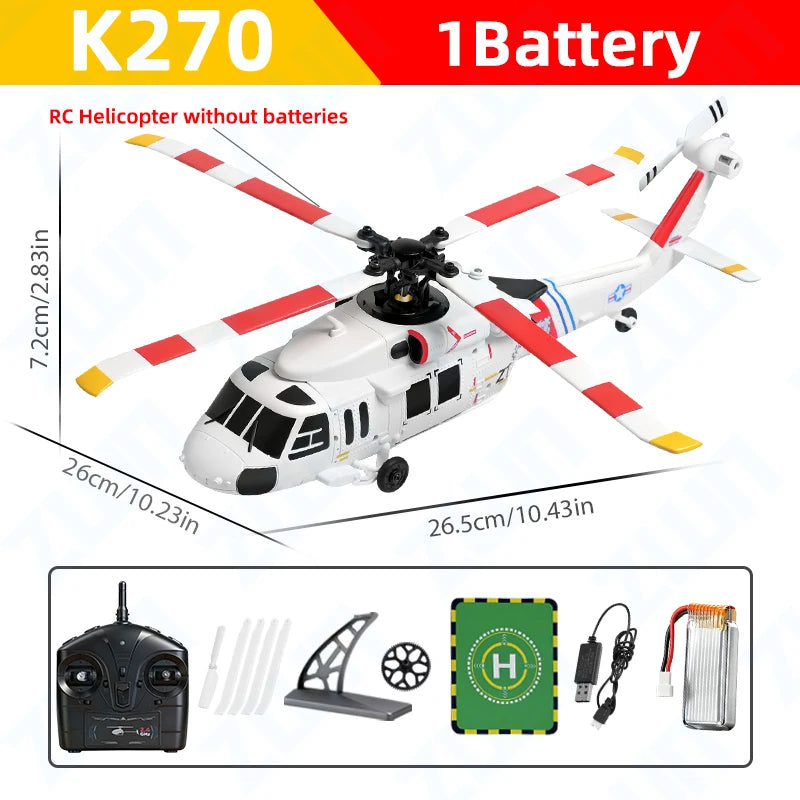

What's Included

The WLtoys K270 package includes:

• 1 × WLtoys K270 RC Helicopter

• 1 × 2.4G Remote Controller

• 1 × 3.8V 800mAh 20C Battery

• 1 × USB Charging Cable

• Operating Instructions

• Original Product Box

Why Choose the WLtoys K270?

The WLtoys K270 RC Helicopter combines a recognizable Black Hawk UH-60L-inspired design with modern stabilization and positioning technology. Its 4-channel control system, 6-axis gyroscope, altitude hold, optical flow positioning, and one-key takeoff and landing functions provide a range of features designed to make RC helicopter operation more accessible.

The 1106 brushless main motor provides the required power for the four-rotor configuration, while the included 3.8V 800mAh battery provides approximately eight minutes of flight time. With its compact dimensions and 2.4G remote system, the K270 is suitable for RC enthusiasts looking for a detailed military helicopter model with assisted flight features.

Frequently Asked Questions

Is the WLtoys K270 a 4-channel RC helicopter?

Yes. The WLtoys K270 uses a 4-channel control system for managing altitude, forward and backward movement, turning, and side flight.

Does the WLtoys K270 have altitude hold?

Yes. The K270 features altitude hold using a barometer, together with optical flow positioning to assist with stable flight.

What battery does the WLtoys K270 use?

The helicopter uses a supplied 3.8V 800mAh 20C battery.

How long can the WLtoys K270 fly?

The supplied specifications state an approximate flight time of 8 minutes. Actual flight time can vary depending on operating conditions and flying behavior.

Does the WLtoys K270 have a brushless motor?

Yes. The main motor is a 1106 11200KV out-runner brushless motor.

What is the control range of the WLtoys K270?

The stated remote control distance is approximately 80–100 meters.

Is the WLtoys K270 suitable for beginners?

The K270 includes 6-axis gyroscope stabilization, altitude hold, optical flow positioning, and one-key takeoff and landing. These features are designed to make the helicopter easier to control, although users should follow the operating instructions and practice in an appropriate open area.
